Symptoms
- The main Multi-Function Display (MFD) touchscreen goes completely dark
- The car starts and drives normally — no warning lights, no hybrid system issues
- The display does not come back on its own after a restart
- Audio, climate, and navigation controls on the screen are unresponsive
The Fix: Reset the DOME Fuse
The MFD screen shares a fuse circuit with the interior dome light (labeled DOME, 15A). When this circuit trips or glitches, the display loses power while everything else works normally. Pulling the fuse and reseating it resets the circuit.
Step-by-Step
- Turn the car off and remove the key (or press Power to off).

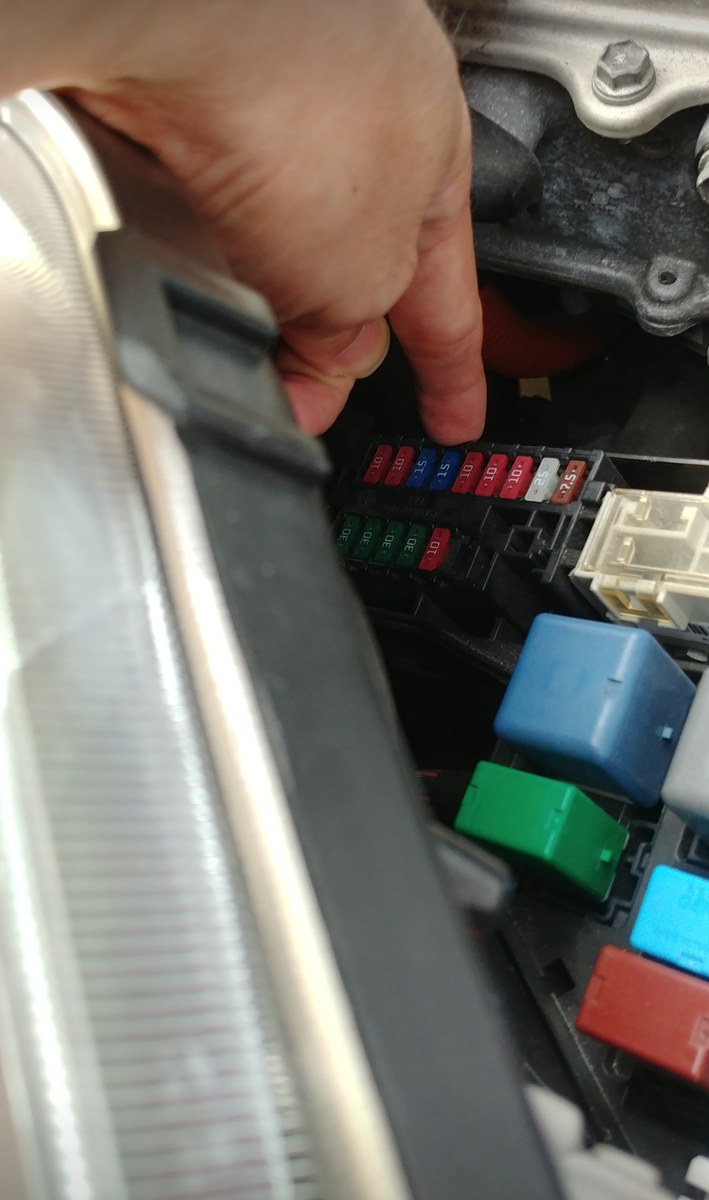

- Locate the DOME fuse using the diagram on the fuse box cover — check both the interior fuse box (driver's side dash panel) and the engine compartment fuse box (under the hood). The fuse will be labeled DOME.
- Pull the DOME fuse out using the fuse puller tool (usually stored in the fuse box) or needle-nose pliers. Inspect it — the metal strip inside should be intact. If it's broken, the fuse is blown and needs replacing (same amperage rating).
- Wait 10–15 seconds, then push the fuse firmly back in.
- Start the car. The MFD screen should power on normally during startup.
About the Gen 2 MFD Screen
The Multi-Function Display is a touch-sensitive LCD screen in the center of the dashboard. It controls:
- Audio / navigation
- Climate control settings
- Hybrid system energy flow display
- Fuel economy history
- Vehicle settings
On high-mileage Gen 2 cars the touchscreen calibration can also drift — taps register in the wrong spot. This is a separate issue from the screen going dark and is typically fixed by recalibration through the service menu, or by replacing the unit.
Physical Screen Replacement
If the fuse reset doesn't work — or the screen goes dark again within days — the display unit itself needs replacement. This is a medium-difficulty DIY job that requires removing center dash trim. The good news: it overlaps almost entirely with the combination meter disassembly, so if you need both done, one session covers both.
Parts and Sourcing
| Source | Cost | Notes |
|---|---|---|
| eBay used unit | $100–$250 | The most common DIY path. Touch function should work on arrival — but delamination (LCD layer separating from touchscreen digitizer) can develop years later from heat cycles. Check seller return policy and confirm touch was tested. Owner replaced with an eBay unit for ~$250; it worked well for a few years before delamination appeared. |
| Junkyard (Pull-A-Part, LKQ) | $50–$150 | Cheaper but harder to pre-verify. Test the screen in the donor car if possible before pulling. Match year range carefully — see compatibility note. |
| Toyota OEM | $500–$900+ | Only justifiable on a very low-mileage car. A used unit is the practical choice at this age. |
Before You Start: Order Spare Vent Clips
Step-by-Step: MFD Removal and Replacement
- Disconnect the 12V auxiliary battery (under the cargo floor, negative terminal first). Wait 5 minutes before touching any dash components.
- Remove the center AC vent trim using plastic pry tools only — never metal. Work from the outer edges inward. Go slowly. If a clip snaps, set the broken piece aside; forcing it makes things worse.
- Remove the trim bezel surrounding the MFD. Also clip-mounted. Note the orientation of each piece before removing so reassembly is straightforward.
- Remove the 4 mounting screws holding the MFD unit in place.
- Slide the MFD unit forward. There are 2–3 wiring harness connectors on the back — press each release tab and pull straight off. Do not pull by the wires.
- Transfer any brackets from the old unit to the new one if needed for fitment.
- Connect the harness connectors to the new unit before fully seating it — easier to do with the unit partially out.
- Before reinstalling any trim, reconnect the 12V battery and power on the car. Confirm the screen lights up, verify touch works across the full display, and test audio and climate controls. Catching a problem here saves a full disassembly.
- Once confirmed working: seat the MFD, reinstall the mounting screws, press the trim bezel back in, then reinstall the vent trim.
Doing This Alongside the Combination Meter
The center dash disassembly for MFD replacement overlaps heavily with combination meter repair — both require removing the same trim pieces, risking the same brittle clips, and working in the same area. If you have a failing combination meter and a questionable MFD screen, do both repairs in one session. The brittle clips only have to be risked once, and the total extra time for the second job is minimal once the dash is already open.
Notes from the Field
Replaced the MFD with a used eBay unit for around $250. The installation went smoothly — the hardest part was the center vent clips, which are genuinely fragile after years in Florida heat. Ordered replacement clips beforehand, which was the right call; one snapped during removal anyway.
The eBay screen worked well for a few years before delamination set in — the touchscreen layer started separating from the LCD, showing as cloudiness and unreliable touch in spots. It's a known failure mode on used units. If you're buying used, factor in that it may not last forever and verify the return policy before buying.
The DOME fuse reset is always worth trying first. It takes 2 minutes and feels almost too simple — but if a completely dark screen comes back after a fuse pull, that's a very different problem from a dead display unit. Confirm which one you're dealing with before spending $150+ on a replacement.
One confirmation that you're dealing with the right fuse: if the interior dome light also stopped working at the same time as the display, they're on the same circuit. That's a reliable sign you're in the right place.
